Full custom air handler units designed for all HVAC applications. Built to meet or exceed the customer specifications in a wide range of options; air filtration, cooling, heating, and make up air systems.
Our custom air handler design starts at 2,000 CFM up to 120,000 CFM.

• Un-painted Galvanized Steel (Indoor units only)
• Painted or un-painted Aluminum
• Stainless Steel 304 & 316 SS
• Painted Galvannealed Steel
• Standard color paint or custom colors available for all indoor or outdoor units.

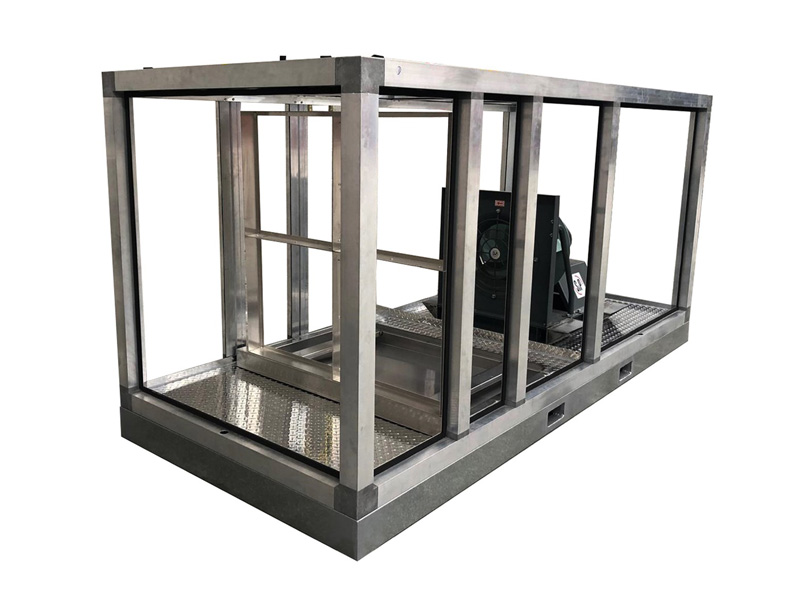

Modular units can be manufactured for many types of applications. We offer thermal break and non-thermal break contstruction. These indoor modular units offer a flexible configuration for all building types where unit weight is an factor. All modular units are built with removable panes that makes it a very serviceable installation where space is limited inside mechanical rooms. Eventhough it’s light construction design, modular unit are robust while they still provide a high quality cosmetic design.

Capacity Range: from 1000 CFM to 40 000 CFM

• Thermal and Non Thermal Break frame
• MATERIAL: 6063 Aluminum Extrusion Modular Frame
• Double wall panel construction in 1" or 2" thick
• Prepainted galvanized steel, aluminum 5052 or stainless steel
• Custom colors available
• Two slope drainage, stainless steel or painted galvanized steel.
• DRAIN PAN: Double wall panel construction in 1" or 2" thick

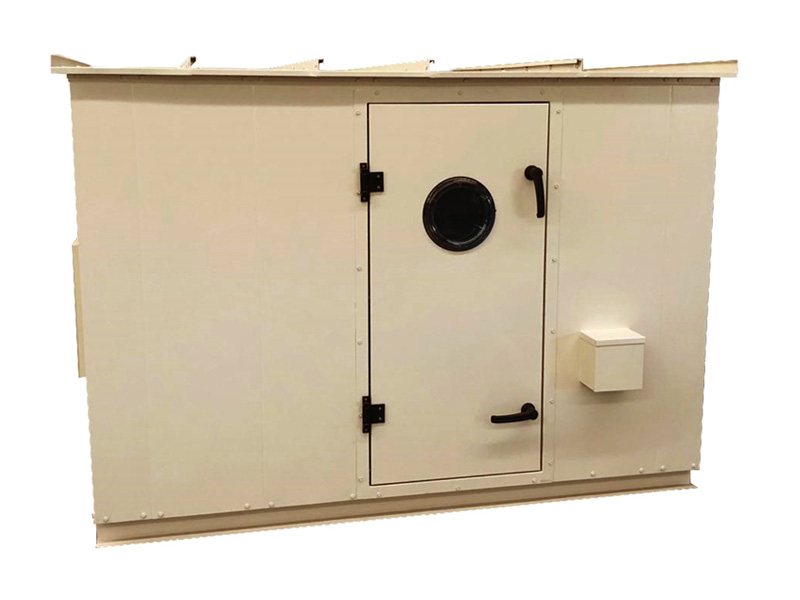

• ACCESS DOOR: Negative / positive pressure access door, low air leak.
• Round windows are available for all sections if required by the customer.

We offer many options depending on the level of filtration that you are trying to achieve. We can help you achieve the most efficient design according to your needs. Filter Housings is available in a variety of arrangements and capacities up to 20,000 CFM. Our housing design can be used in any application where air filtration is a requirement, such as schools, office buildings, hospitals, and clean rooms. The filter housing units are designed to accommodate all types of efficiency and sizes. Suitable for installation in a duct or next to an air handling unit.

• Side-Access Housing, Carbon Filter Housing, V-Bank Housing or Hepa Filter Housing
• Available in galvanized steel or stainless steel 304L & 316
• Designed for use with 1”,2″, 4″, 12” in-line depth or Single Header Type box filters– 15”-22”-30” & 36” in-line depth, HVAC filters
• No clips or extra gasked are necessary
• Flanged for ductwork installation or available collar with special flange
• Different types of Insulation: 1”,2″ Thick, Foil Baked, Doble Wall or Non insulation
• Door types: 1 DOOR STANDARD (SPECIFY ACCESS RIGHT or LEFT HAND) or 2 DOORS CUSTOM
• Dwyer Gauge available 2000, 2001 & 2003, factory installed, shipped loose for field installation by mechanical contractor.
• Air flow configuration options: Horizontal (Standard), Vertical Up flow or Vertical Down Flow (Custom)

...

Units with a gas fired furnace, the fuel is mixed with air and burned. The flames heat a metal heat exchanger where the heat is transferred to air. Air is pushed through the heat exchanger by the air handler fan. At the furnace, combustion products are vented out of the building through a flue pipe.

With a variety of HVAC filters for industrial and commercial applications as well as for residential use to improve indoor air quality and comfort. The filters in the supply air are used as first and second filter stages, either as complete filtration solutions for these applications or as pre-filters for cleanroom process applications. The filters are also used in the exhaust air or in recirculating systems to protect the air handling units.

Air filtration units are used in applications where air quality is important, notably in building ventilation systems. They are composed of different stages of particulate air filters, with a fibrous or porous materials which removes solid particulates such as dust, pollen, mold, and bacteria from the air. Filters containing an absorbent or catalyst such as carbon may also remove odors and gaseous pollutants such as volatile organic compounds or ozone.

Available in different sizes and heights. They can be manufactured of galvanized steel, aluminum, or stainless steel. The curbs are available with or without: wood insulation and reinforcement, Recommended for all types of air handlers, package units, or any other unit that requires to be roof mounted. There are two types of construction: full welded as one piece or complete knock down construction bolted to facilitate the installation in reduced spaces, curb clips are also available for securing unit on to the curb.

• Standard Flat Roof Curbs
• Pitched Roof Curbs
• Curb Adaptors
• Duct Transitions
